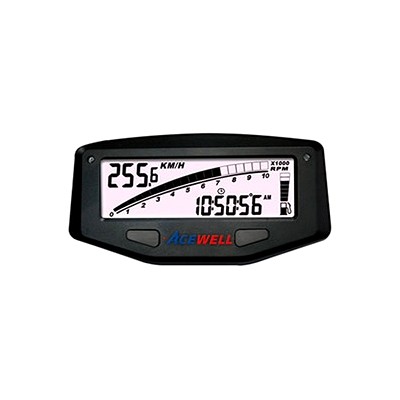

Part Number: ACE1600-AB
Price:
Choose the matching cable kit for your bike. (Cable is necessary for proper speedometer installation.) See the chart below.
 |
|
|
|
|
|
|
|
CLICK ON CABLE IMAGE TO ADD SPEEDOMETER & SELECTED CABLE TO SHOPPING CART |
|
|
|
 |
|
 |
|
Universal Speed Sensor cable with Magnet Pickup for use on any bike. |
|
|
|
 |
|
 |
|
Speed Sensor cable for Honda CRF-X, Yamaha WR and KTM bike models. |
|
|
|
 |
|
 |
|
Speed Sensor cable for Honda XR650R bike models. |
|
|
|
 |
|
 |
|
Speed Sensor cable for Suzuki DR-Z bike models. |
|
|
|
 |
|
 |
|
Speed Sensor cable for various Suzuki bike models. |
|
|
|
 |
|
 |
|
Speed Sensor cable for various Suzuki and Kawasaki bike models. |
|
|
Product Description:
- Displays speedometer, bar-graph tachometer, bar-graph fuel gauge plus one additional function at the same time.
- LED warning lights for low-fuel.
- Powered with either the internal CR2032 battery or the bike's battery.
- Bar-graph tachometers with selectable 10,000rpm or 20,000rpm redline.
- Fuel gauge includes 100, 250, and 510 Ohm options for fuel meter input resistance, as well as "fuel gauge off" mode.
- Total hour meter and odometer are always kept in memory.
- Universal wheel circumference setting range from 1 to 3999mm (157in, which is 4.2' diameter)
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- E-mark certification (European equivalent of DOT)
- Waterproof
Detailed Technical Information:
Power Input: DC 12V
Tachometer Sensor: CDI or Ignition Coil Signal
Speed Sensor: Reed Sensor (Internal or Bike's Power) or Hall Sensor (Bike's Power Application)
Wheel Circumference Setting: 1mm-3,999mm (157in which is 4.2' diameter)
Dimensions: 4.3" x 2.2" x 0.8" (110mm x 55mm x 21.5mm)
Power Consumption:
50uA in clock mode
1mA at ON status without backlight and all sensors off
2mA with all sensors on and without the backlight
15mA with all sensors on and 3 sec backlight
25mA with all sensors on and continuous backlight
|
