Part Number: ESG490
Price:
Product Description:

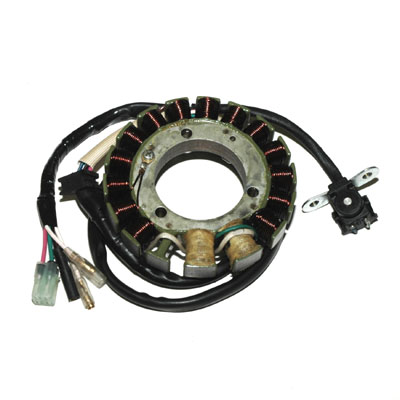

This stator is designed as a High Power plug-in replacement for the OEM stator in your Honda TRX400. It comes with leads and rubber grommet attached, and is ready to drop into the side case. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. Output is a total of 250W, split over three lighting outputs. You can use ESG490 to drive the stock battery charging system AND have 2x100W lighting outputs available as well. Obviously the ignition source coil output matches the OE stators output.
Detailed Technical Information:
Resistance BLACK/RED - GROUND: 120Ω (SOURCE COIL)
Resistance GREEN - PINK: 0.5-1.0Ω (FLOATING COIL)
Resistance WHITE - GROUND: 0.5-1.0Ω (AC LIGHTING OUTPUT)
Outside Diameter: 115mm.
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
