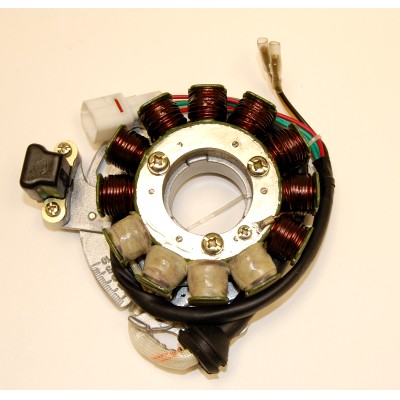

Lighting Stator Yamaha YFZ350 Banshee (95-06) - High Output |
|
|
|
Part Number: ESG870
Price: $169.00
Product Description:
This stator is designed as a 250W High Power plug-in replacement for the OEM stator in your YFZ350 Banshee. It comes with leads and rubber grommet attached, and is ready to mount on the engine case. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. Obviously the ignition source coil output matches the OE stators output, even though the coil configuration looks totally different. Use two of our ESR012 AC regulators to keep voltage under 14V and prevent bulbs from blowing.
Detailed Technical Information:
Resistance Readings:
Between the WHITE stator wire and Ground: 0.7 ohms
Between the YELLOW wire and ground: 0.7 ohms
Between the GREEN and RED: 19 ohms (=Ignition Source Coil)
Between the RED/WHITE and GREEN white: 118 ohms
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 YAMAHA
- ATV: YAMAHA YFZ350 Banshee, 95-06
Replaces OE Number(s):
3GG-85510-00-00
|
|
|
