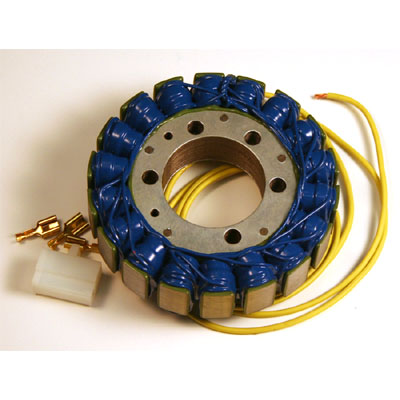

Stator 3-Phase - Heavy Duty |
|
|
|
Part Number: ESG740
Price:
Product Description:
This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with new connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 103mm
Inside Diameter: 42mm
Power Output: 210W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within 10% of this value.
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA VF500F/F2, 84-86
Replaces OE Number(s):
31120-KE7-024, 31120-KE7-014
- Street Motorcycle: HONDA VF500C / V30 Magna, 84-85
Replaces OE Number(s):
31120-KE7-024, 31120-KE7-014
