Stator 3-Phase - Suzuki

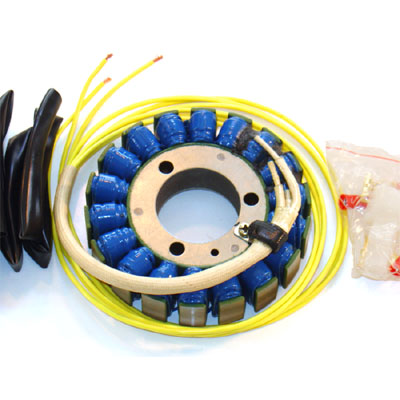

	Part Number: ESG010 Price: Product Description: This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with extra connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty. Detailed Technical Information: Resistance between the YELLOW leads: 0.9-1.3 Ω. Between any YELLOW lead and GROUND: Open Circuit (OL on display) Outside Diameter: 93mm Inside Diameter: 35mm Thickness: 18mm Special note ONLY FOR '76-'79 GS750 and GS550 models (= the 8-valve motors): This ESG010 stator can ONLY be used IF YOU ALSO install an '80-'83 GS850 flywheel. Other Suzuki models and years are NOT affected. Download Documentation: [ Download Fitting Instructions (PDF) ] *Standard PDF files are viewable on Adobe Reader (free). Vehicles This Product is Known to Fit: Click on brand to expand/contract list. Click on model to see all available products. KAWASAKI Street Motorcycle: KAWASAKI KZ650CSR, 81-82 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ700, 1984 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ750E, 80-83 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ750LTD, 1980 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ750 Spectre, 80-83 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ750LTD, 80-83 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ750R GPZ750 (twin shocks), 1982 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI ZR-7 / ZR-7S, 00-05 Replaces OE Number(s): 21003-1349 Street Motorcycle: KAWASAKI ZX750 GPZ750, 83-85 Replaces OE Number(s): 21003-1083 Street Motorcycle: KAWASAKI KZ1300, 79-81 Replaces OE Number(s): 21003-1035 Street Motorcycle: KAWASAKI KZ1300B2 Touring, 1980 Replaces OE Number(s): 21003-1035 Street Motorcycle: KAWASAKI KZ1300, 79-81 Replaces OE Number(s): 21003-1020 Street Motorcycle: KAWASAKI KZ1300, 1980 Replaces OE Number(s): 21003-1035 Street Motorcycle: KAWASAKI KZ1300 Voyager, 1982 Replaces OE Number(s): 21003-1064 Street Motorcycle: KAWASAKI ZN1300 Voyager SE, 1983 Replaces OE Number(s): 21003-1064 Street Motorcycle: KAWASAKI ZN1300 Voyager SE, 87-88 Replaces OE Number(s): 21003-1064 SUZUKI Street Motorcycle: SUZUKI GS300L, 82-85 Replaces OE Number(s): 31401-45011, 31401-45030 Street Motorcycle: SUZUKI GS450, 80-82 Replaces OE Number(s): 31401-45011, 31401-45030 Street Motorcycle: SUZUKI GS450, 82-88 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS500E, 89-96 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS500E, 97-00 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS500F, 01-03 Replaces OE Number(s): 31401-01D10 Street Motorcycle: SUZUKI GS500F, 04-06 Replaces OE Number(s): 31401-01D10 Street Motorcycle: SUZUKI GS550, 81-82 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS550L/M, 80-82 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS650E (chain drive), 81-82 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS650G/GL (shaft drive), 81-82 Replaces OE Number(s): 31401-45120, 31401-45110 Street Motorcycle: SUZUKI GS650 Katana (chain drive), 1983 Replaces OE Number(s): 31401-47030, 31401-47020 Street Motorcycle: SUZUKI GS750E (16-valve models), 80-83 Replaces OE Number(s): 31401-45120, 31401-45110 Street Motorcycle: SUZUKI GS850G, 82-83 Replaces OE Number(s): 31401-45120, 31401-45110 Street Motorcycle: SUZUKI GS1100S Katana (GSX1100 Katana), 83-83 Replaces OE Number(s): 31401-49531, 31400-49532 Street Motorcycle: SUZUKI GZ250, 99-09 Replaces OE Number(s): 32101-13F00 Street Motorcycle: SUZUKI GS850G, 80-81 Replaces OE Number(s): 31401-45110 YAMAHA Street Motorcycle: YAMAHA XJ600S Seca II, 97-98 Replaces OE Number(s): 4BR-81410-00-00 Street Motorcycle: YAMAHA XJ600S Seca II, 92-96 Replaces OE Number(s): 4BR-81410-00-00
