Part Number: ESG090
Price:
Product Description:

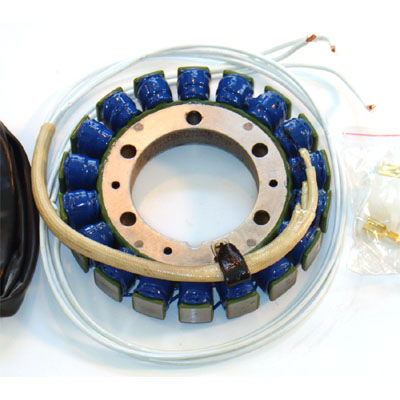

This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with new connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 54mm
Thickness: 16mm
Power Output: 260W @ 3500RPM
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within 10% of this value. 260W @ 3500RPM*
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
