Stator 3-Phase |
|
|
|
Part Number: ESG140
Price:
Product Description:

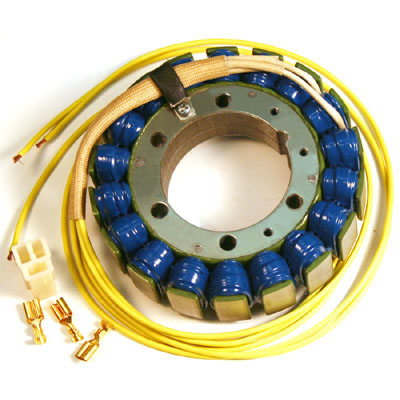

This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with new connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Outside Diameter: 54mm
Thickness: 24mm
Power Output: 320W @ 4500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA XL600V Transalp, 89-90
Replaces OE Number(s):
31120-MM9-004
- Street Motorcycle: HONDA VF700C Magna, 84-87
Replaces OE Number(s):
31120-MK3-004, 31120-MB1-024
- Street Motorcycle: HONDA VF700C Magna, 84-87
Replaces OE Number(s):
31120-MK3-004, 31120-MB1-024
- Street Motorcycle: HONDA VF700F Interceptor, 84-85
Replaces OE Number(s):
31120-MB2-691, 31120-MB2-690
- Street Motorcycle: HONDA VF700S Sabre, 84-85
Replaces OE Number(s):
31120-MB2-691, 31120-MB2-690
- Street Motorcycle: HONDA VFR700F Interceptor, 86-87
Replaces OE Number(s):
31120-ML7-691, 31120-ML7-004
- Street Motorcycle: HONDA VF750S Sabre, 82-83
Replaces OE Number(s):
31120-MB1-024
- Street Motorcycle: HONDA VF750C Magna, 82-83
Replaces OE Number(s):
31120-MB1-024
- Street Motorcycle: HONDA VF750C V45 Magna, 88
Replaces OE Number(s):
31120-MN0-004
- Street Motorcycle: HONDA VF750F V45 Interceptor, 83-84
Replaces OE Number(s):
31120-MB2-691, 31120-MB2-690
- Street Motorcycle: HONDA VFR750F Interceptor, 86-87
Replaces OE Number(s):
31120-ML7-692, 31120-ML7-691
- Street Motorcycle: HONDA VFR750F (Europe), 88-89
Replaces OE Number(s):
31120-ML7-692, 31120-ML7-691
- Street Motorcycle: HONDA VF1000F Interceptor, 84
Replaces OE Number(s):
31120-MB6-014
- Street Motorcycle: HONDA VF1000R, 84-86
Replaces OE Number(s):
31120-MB6-701
- Street Motorcycle: HONDA VF1100S / V65 Sabre, 84-85
Replaces OE Number(s):
31120-MB0-415, 31120-MB0-405
- Street Motorcycle: HONDA VF1100C / V65 Magna, 83-86
Replaces OE Number(s):
31120-MB0-415, 31120-MB0-405
- SUZUKI
|
|
|
