Stator Honda CB900/750/650 - Outer Stator |
|
|
|
Part Number: ESG210
Price:
Product Description:

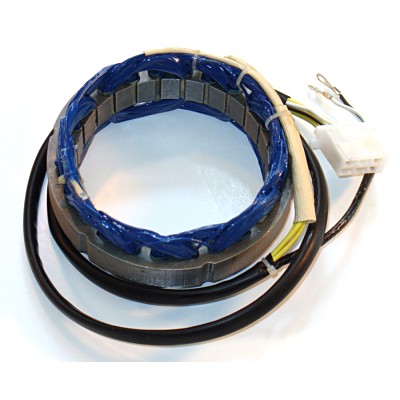

This stator is designed as a plug-in replacement for the OEM stator in your Honda CB. -IT DOES NOT INCLUDE THE ROTOR- It comes with wiring and rubber grommet attached, connection rings to hook up to the carbon brushes, and is ready to drop into the side case. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. We also carry the ESF901 rotor to replace the stock alternator rotor which often times fails.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA CB750F/F2/KZ DOHC Supersport, 79-83
Replaces OE Number(s):
31120-425-871
- Street Motorcycle: HONDA CB750SC Nighthawk, 82-83
Replaces OE Number(s):
31120-425-871
- Street Motorcycle: HONDA CB650SC Nighthawk SOHC (chain drive), 82
Replaces OE Number(s):
31120-426-832
- Street Motorcycle: HONDA CB900C Custom, 80-82
Replaces OE Number(s):
31120-461-415, 31120-461-405
- Street Motorcycle: HONDA CB900F/F2 Supersport / Bol d'Or, 80-82
Replaces OE Number(s):
31120-461-415, 31120-461-405
- Street Motorcycle: HONDA CB1000C Custom, 83
Replaces OE Number(s):
31120-461-415, 31120-461-405
- Street Motorcycle: HONDA CB1100F Supersport, 83
Replaces OE Number(s):
31120-461-415, 31120-461-405
|
|
|
