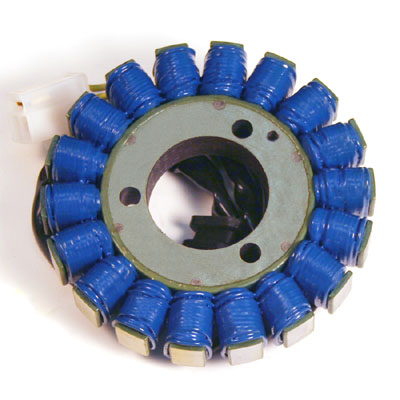

Stator Kawasaki EL/EN/EX Models |
|
|
|
Part Number: ESG110
Price:
Product Description:
This heavy duty stator can be used as a plug-in replacement for the OEM stator in your Kawasaki. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the bike's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 104mm
Inside Diameter: 38mm
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 KAWASAKI
- Street Motorcycle: KAWASAKI EL250, 88-89
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI EL250 Eliminator, 91-92
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI EL250 Eliminator, 91-94
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI Ninja 250R / EX250, 86-87
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI Ninja 250R, 88-90
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI Ninja 250R, 92-95
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI Ninja 250R / ZZ-R250, 96-07
Replaces OE Number(s):
21003-1154
- Street Motorcycle: KAWASAKI EN454LTD / EN450, 85-90
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EN500 Vulcan 500, 90-94
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EN500 Vulcan 500 LTD, 95-96
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EN500 Vulcan 500 LTD, 96-00
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EN500 Vulcan 500 LTD, 01-09
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EX500, 87-93
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EX500 Ninja 500R, 94-98
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EX500 Ninja 500R, 99-06
Replaces OE Number(s):
21003-1123
- Street Motorcycle: KAWASAKI EX500 Ninja 500R, 03-09
Replaces OE Number(s):
21003-1123
|
|
|
