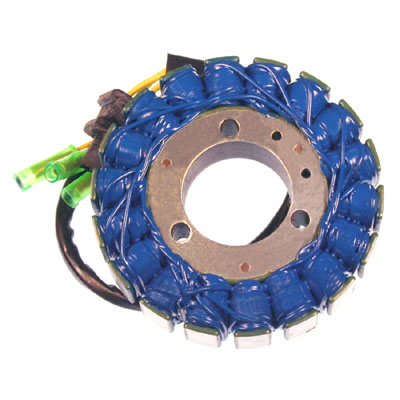

Stator Kawasaki Vulcan 700/750/800 |
|
|
|
Part Number: ESG050
Price:
Product Description:
This heavy duty stator can be used as a plug-in replacement for the OEM stator in your Vulcan. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Vulcan's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 104mm
Power Output: 240W @ 3000RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within 10% of this value. Note also that the OEM stator output specifications are overstated. The real output of the OEM stator in the Vulcan is 220W @ 3500RPM.
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
