Part Number: ESG035
Price:
Product Description:

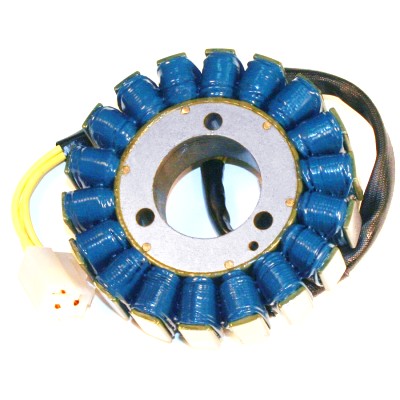

This heavy duty stator can be used as a plug-in replacement for the OEM stator in your Suzuki. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Suzuki's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 103mm
Power Output: 312W @ 3000RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
|
