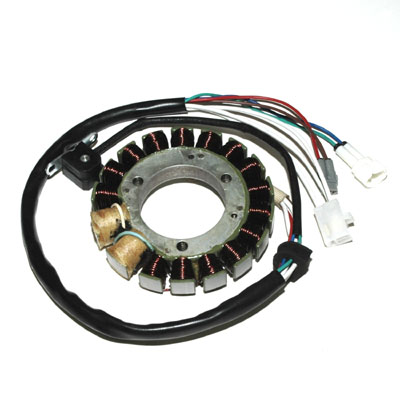

Stator Yamaha YFM350 Warrior/Big Bear |
|
|
|
Part Number: ESG434
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:
This heavy duty stator is a plug-in replacement for the OEM stator in your Yamaha YFM350. It comes with pulser, ignition source coil output, connectors and rubber grommet attached, ready to drop into the side case and plug into the YFM's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. Use this stator to replace the OE item which often suffers from ignition source coil failure.
Detailed Technical Information:
Resistance RED - WHITE: 320 Ω +/- 10%
Resistance GREEN - BROWN: 280 Ω +/- 10%
(RESISTANCE VALUES ARE FOR Electronicamotos PART ONLY AND WILL VARY FROM OEM DATA)
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 YAMAHA
- ATV: YAMAHA YFM350 Big Bear 2x4, 96-98
Replaces OE Number(s):
3HN-85510-10-00, 4GB-85510-00-00
- ATV: YAMAHA YFM350 Big Bear 4x4, 96-97
Replaces OE Number(s):
3HN-85510-10-00, 4GB-85510-00-00
- ATV: YAMAHA YFM350 Warrior, 96-01
Replaces OE Number(s):
3HN-85510-10-00, 4GB-85510-00-00
- ATV: YAMAHA YFM400 Kodiak Bear 4x4, 93-94
Replaces OE Number(s):
4GB-85510-00-00, 3HN-85510-10-00
- ATV: YAMAHA YFM400 Kodiak / Kodiak 4x4, 96-98
Replaces OE Number(s):
3HN-85510-10-00, 4GB-85510-00-00
- ATV: YAMAHA YFM350 Big Bear 4x4, 95
Replaces OE Number(s):
4GB-85510-00-00, 3HN-85510-10-00
- ATV: YAMAHA YFM400 Kodiak, 95
Replaces OE Number(s):
4GB-85510-00-00, 3HN-85510-10-00
|
|
|
