Lighting Stator 6-Pole Suzuki RM125 (87-95) - 50W |
|
|
|
Part Number: ESL458
Price:
Please for more information.
Product Description:

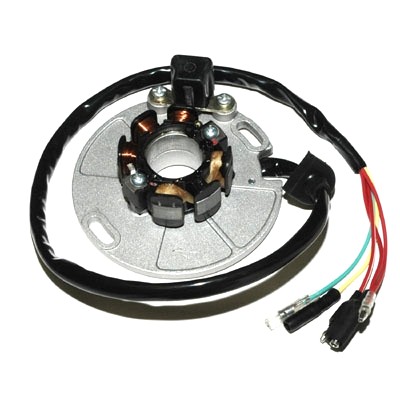

This is a complete lighting stator for your Suzuki RM that replaces the OE stator in your bike. It comes as an aluminum plate with 6-pole stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator, and it provides a nice lighting output as well. We recommend using a 35W halogen bulb in your headlight, and safeguarding the system with our ESR012 AC Voltage regulator.
Detailed Technical Information:
Plate Outside Diameter: 110mm
Stator Outside Diameter: 59mm
Resistance RED/BLACK - WHITE/RED: 195-230 Ω (Source Coil)
Resistance GREEN - RED: 93-112 Ω (Pickup Coil)
Resistance YELLOW - Ground: 0.8-1.2 Ω (Lighting Coil)
