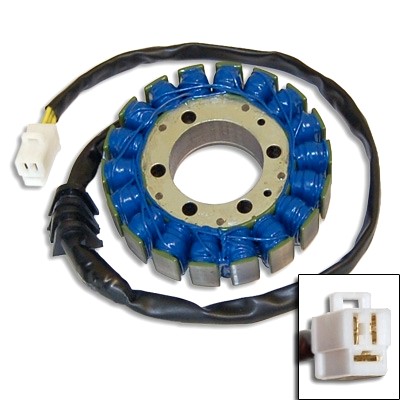

Stator Honda CBR600F Hurricane 87-90 |
|
|
|
Part Number: ESG741
Price:
Product Description:
This stator is a plug-in replacement for the OEM stator in the CBR600F Hurricane. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Honda's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 103mm
Inside Diameter: 42mm
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
|
|
|
Other Products Available for the HONDA VF700C Magna, 84-87
|
