Stator Honda CBR600F4i |
|
|
|
Part Number: ESG744
Price:
Product Description:

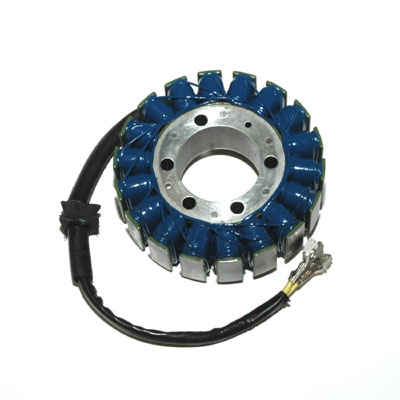

This stator is a plug-in replacement for the OEM stator in your CBR600F4i. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the F4i's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 108mm
Inside Diameter: 42mm
Thickness: 26mm
Power Output: 310W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within 10% of this value.
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA CBR600F4, 99-00
Replaces OE Number(s):
31120-MBW-611, 31120-MBW-J21
- Street Motorcycle: HONDA CBR600F4i, 01-04
Replaces OE Number(s):
31120-MBW-J21, 31120-MBW-611
- Street Motorcycle: HONDA CBR600F4i, 05-06
Replaces OE Number(s):
31120-MBW-J21, 31120-MBW-611
|
|
|
