Stator Honda GL1200 (F.I.-models) |
|
|
|
Part Number: ESG165
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:

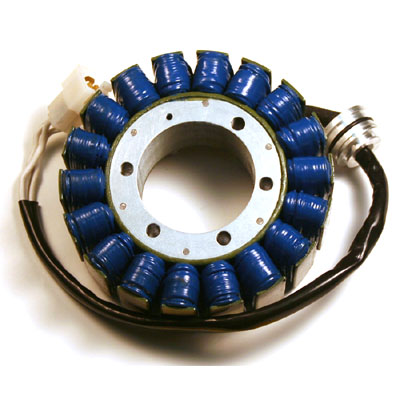

This heavy duty stator can be used as a drop in replacement for the Honda OEM Goldwing stator. It comes with wiring and feed-through plug attached, ready to drop into the engine case and plug into the Honda's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 125mm.
Power Output: 520W @ 2800RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
