Part Number: ESG842
Price:
Product Description:

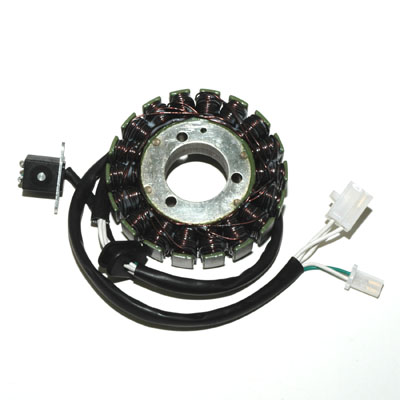

This high power stator can be used as a plug-in replacement for the OEM stator in your Suzuki. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Suzuki's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator, or if you just need the extra electrical power! It comes with a full one year warranty. Extra output available is about 25% over stock, which is a substantial amount. No modifications to the bike are necessary, the stock regulator/rectifier has no problem handling the extra output.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 108mm
Inside Diameter: 38mm
Thickness: 18mm
Power Output: 340W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
We tested the Suzuki V-Strom 650 OEM stator output and found it to be 280W @ 3500RPM
