Stator Suzuki RM125 (87-95) |
|
|
|
Part Number: ESC458
Price:
Please for more information.
Product Description:

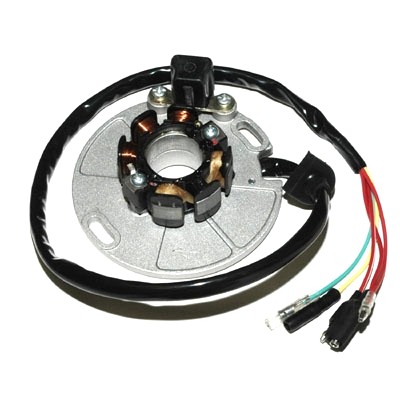

This is a complete replacement stator for your RM Suzuki. It comes as an aluminum plate with 6-pole stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator.
Detailed Technical Information:
Plate Outside Diameter: 110mm
Stator Outside Diameter: 59mm
Resistance RED/BLACK - WHITE/RED: 195-230 Ω (Source Coil)
Resistance GREEN - RED: 93-112 Ω (Pickup Coil)
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 SUZUKI
- Dirt Bike: SUZUKI RM125, 87-88
Replaces OE Number(s):
32101-01B32
- Dirt Bike: SUZUKI RM125, 89-91
Replaces OE Number(s):
32101-27C10
- Dirt Bike: SUZUKI RM125, 92-95
Replaces OE Number(s):
32101-43D10, 32101-43D00
|
|
|
