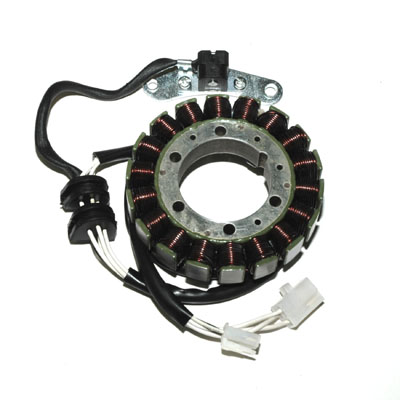

Stator XV650 V-Star - High Power |
|
|
|
Part Number: ESG652
Price:
Product Description:
This high power stator can be used as a plug-in replacement for the OEM stator in your XV650. It comes with pulser, wiring and rubber grommet attached, ready to drop into the side case and plug into the Yamaha's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator, or if you just need the extra electrical power! It comes with a full one year warranty.
Detailed Technical Information:
Resistance between the WHITE leads: 0.7-1.0 Ω.
Between any WHITE lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Power Output: 275W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
Our tests of the OEM stator and flywheel show a maximum output of 210W @ 3500RPM
