Stator YFX660 Rhino - High Power 400W |
|
|
|
Part Number: ESG433
Price:
Product Description:

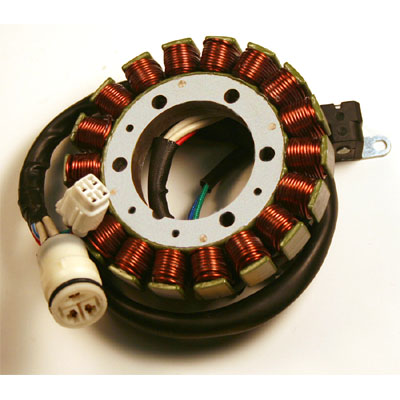

This drop-in replacement stator provides for 400W of output. It is simple to install, but takes several hours due to the location on the engine. Stock output on the Rhino is about 220W, and this new unit offers an extra 12A of available output for amplifiers, winches or any accessory that needs electrical power.
You WILLl need our ESR439 voltage regulator/rectifier as it allows the stator to be hooked up outside of the stock Rhino wiring harness. (NOTE: the stock harness and the stock regulator/rectifier CANNOT HANDLE the extra output!). ESR439 regulator/rectifier connects directly to the battery terminals for optimum efficiency.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 54mm
Power Output: 400W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 YAMAHA
- ATV: YAMAHA YXR66F RHINO 660 4x4 (ALL MODELS), 04-07
Replaces OE Number(s):
5KM-81410-00-00, 5KM-81410-01-00
- ATV: YAMAHA YXR45F RHINO 450 4WD, 05-07
Replaces OE Number(s):
2P5-81410-00-00
|
|
|
