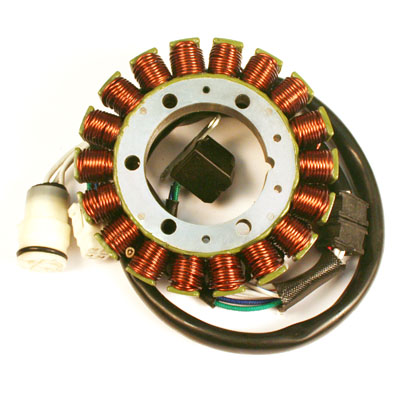

Stator Yamaha YFM350 Grizzly - High Power |
|
|
|
Part Number: ESG941
Price:
Product Description:
This unit is a High Power drop in replacement for the OEM stator in the YFM350R Grizzly. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Yamaha's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator, or if you just need the extra electrical power! It comes with a full one year warranty. Output is about 300W, up about 25% from stock which is a substantial difference. It will allow you to run another two headlights, winch, whatever you desire.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 54mm
Power Output: 300W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
