Stator Yamaha YZF-R6 (99-02) |
|
|
|
Part Number: ESG780
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:

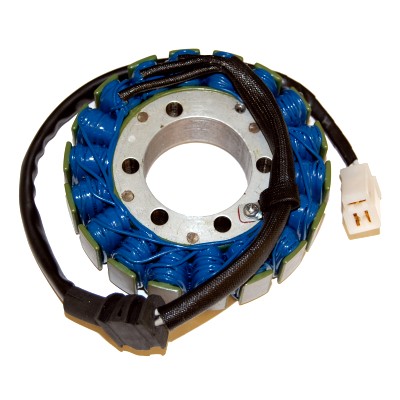

This stator is a plug-in replacement for the OEM stator in your YFZ-R6. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the R6's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 106mm
Inside Diameter: 42mm
Thickness: 23mm
Power Output: 400W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
